Home PET-CF

PET-CF

Selected:
Size: 1.75MM | Weight: 0.5 KG | Color: Black
Sale price AED 220.00
Size: 1.75MM
Weight: 0.5 KG
Color: Black
SKU: T01-K0-1.75-500-SPL

Product Features

  • Very Low Moisture Absorption
  • Exceptional Mechanical Properties
  • High Dimensional Stability
  • Exceptional Thermal Resistance
  • Comes with High Temperature Reusable Spool
  • Diameter: 1.75mm +/- 0.03mm


Cautions for Use

  • 0.2 mm Nozzle Not Compatible
  • Stainless Steel Nozzle Not Recommended
  • Dry before Use
  • Enclosure Printers Required
  • AMS Not Compatible
  • AMS lite NOT Compatible
Add to Wishlist Add to Compare

Notify me when available

Register to receive a notification when this item comes back in stock.

Ask a question
Share

Return within 2 days of purchase.

Guarantee Safe Checkout

Visa
Mastercard
American Express
Diners Club
Apple Pay
Google Pay
Tabby

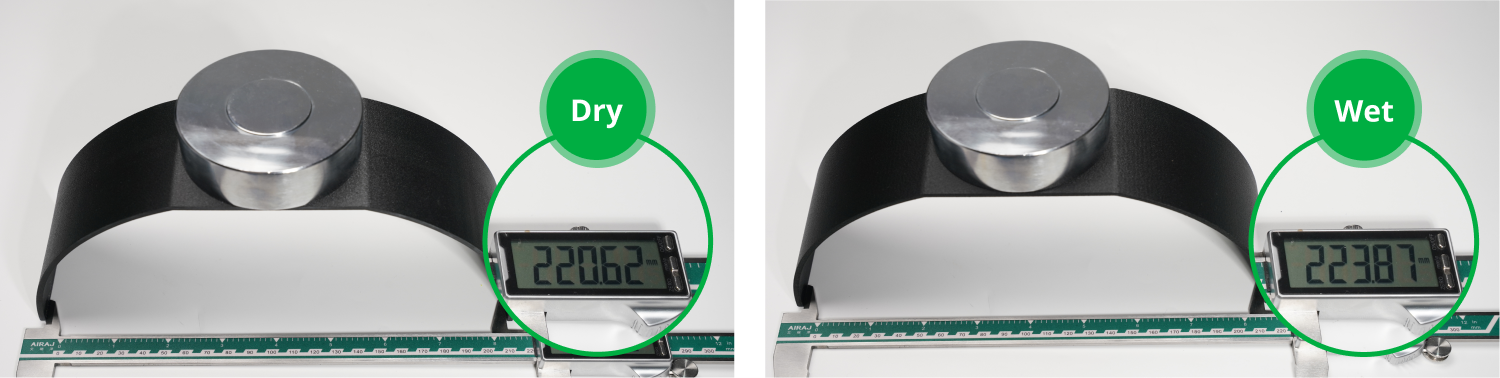

Low moisture absorption

In saturated water absorption conditions, the strength and stiffness of PET-CF have small losses, making it suitable for prints used in high humidity environments.

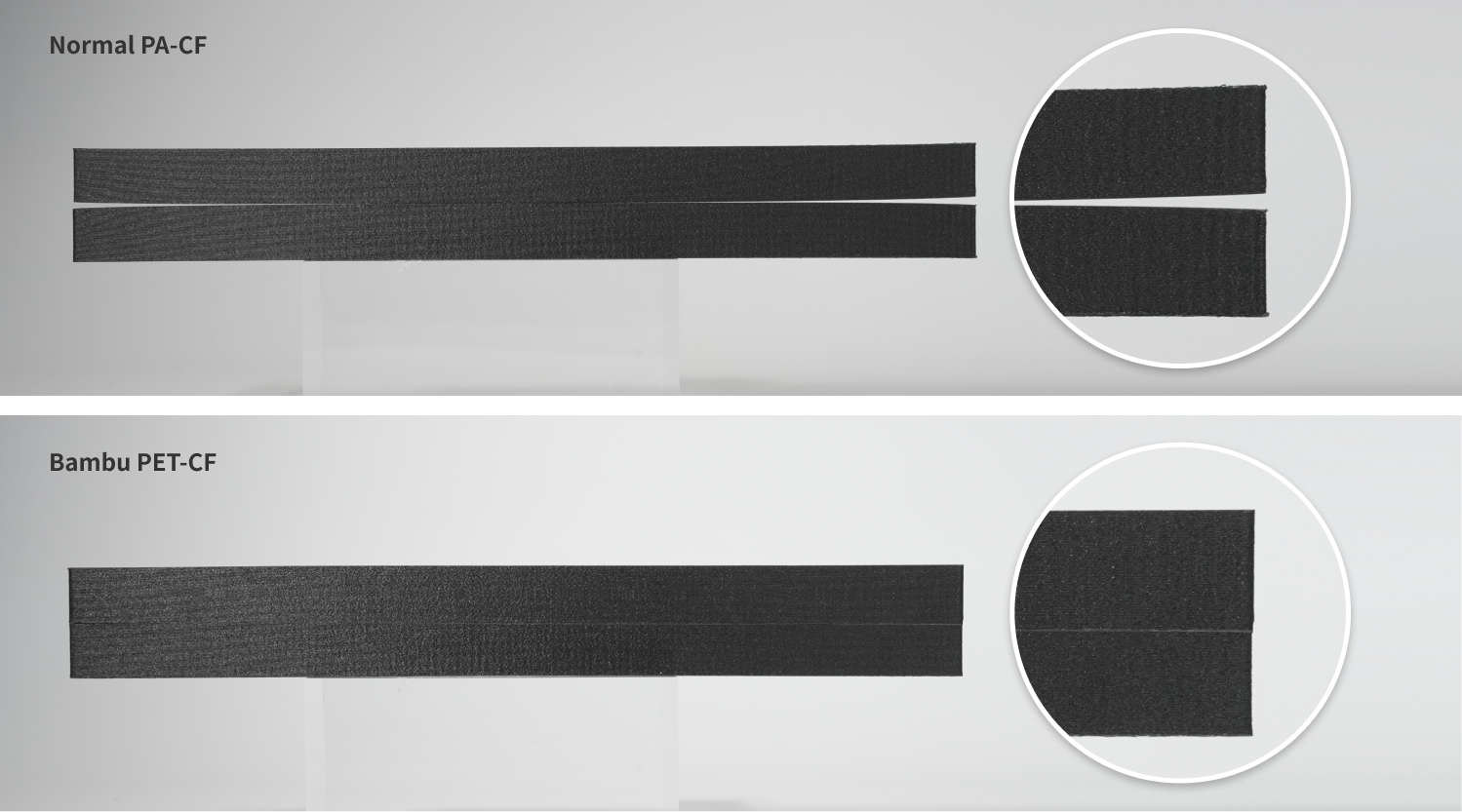

High dimensional stability

Due to the creep and warping resistance of PET-CF, prints can achieve excellent matching accuracy.

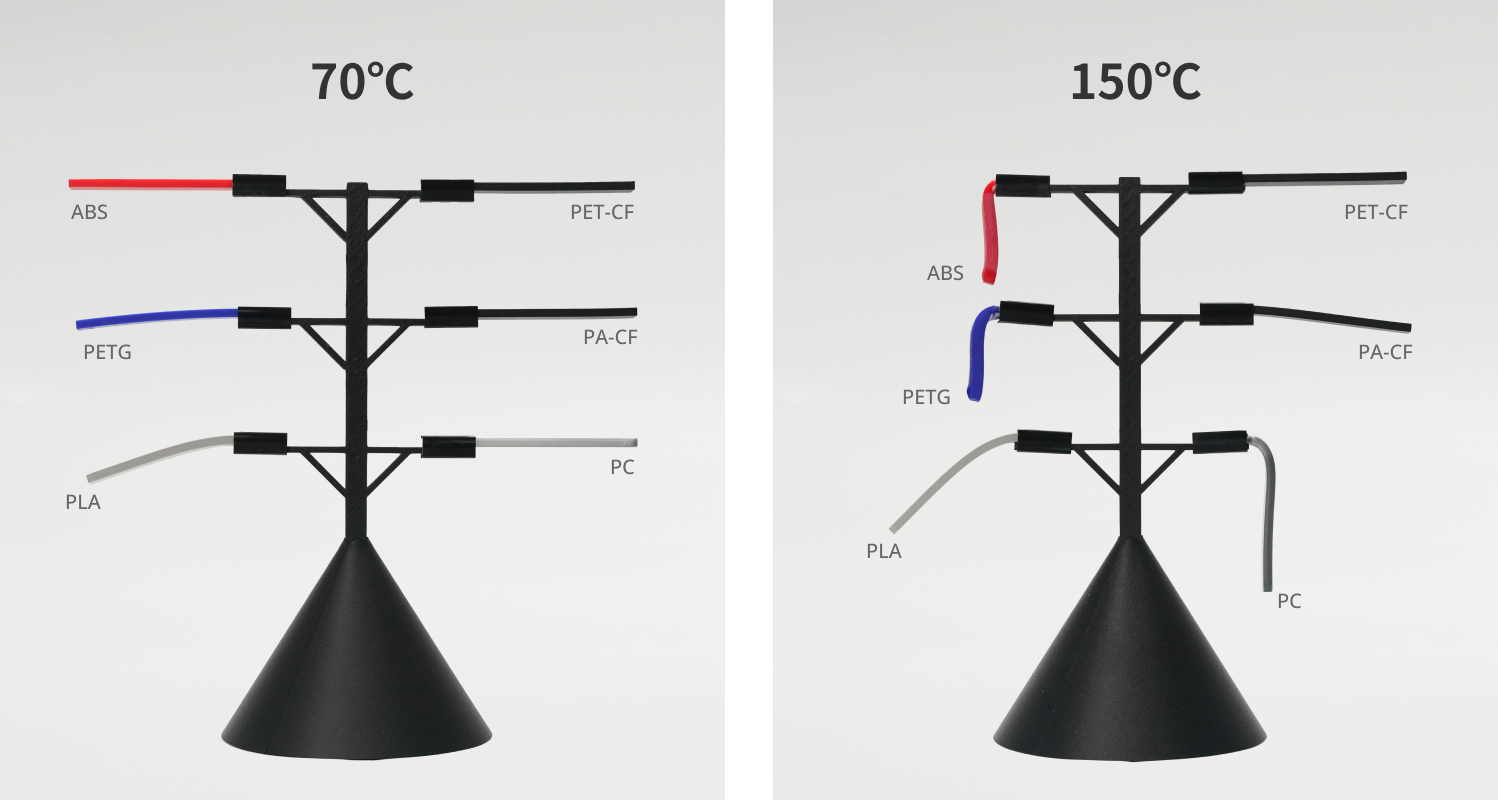

Exceptional thermal resistance

Printing setup
0.6 mm Hardened Steel Nozzle (Recommended)
0.4 mm / 0.8 mm Hardened Steel Nozzle (Capable)
Enclosed printer (Recommended)
Open frame printer (Capable)*
AMS NOT compatible

Technical Specifications

Drying Settings (Blast Drying Oven) 80 °C,8 - 12 h
Printing and Keeping Container's Humidity < 20% RH (Sealed,with Desiccant)
Nozzle Temperature 260 - 290 °C
Bed Temperature (with Glue) 80 - 100 °C
Printing Speed < 100 mm/s
Density 1.29 g/cm3
Vicat Softening Temperature 226 °C
Heat Deflection Temperature 205 °C
Melting Temperature 250 °C
Melt Index 25.3 ± 2.5 g/10 min
Tensile Strength 74 ± 6 MPa
Breaking Elongation Rate 4.5 ± 1.2 %
Bending Modulus 5320 ± 270 MPa
Bending Strength 131 ± 6 MPa
Impact Strength 36.0 ± 2.7 kJ/m2
