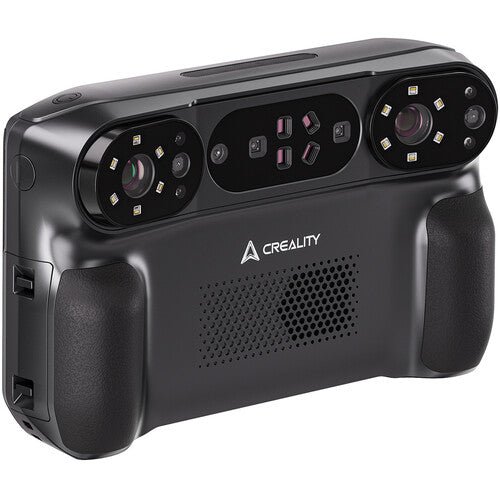

Capture 3D objects in your studio or out in the field with the Sermoon P1 Wireless All-in-One 3D Scanner from Creality. Ideal for manufacturing, automotive, and artistic applications among others, this all-in-one scanner can be used in wired PC, wireless PC, and standalone modes to suit your needs. It utilizes a multi-line blue laser and dual VSCEL scanning to capture objects large and small at speeds up to 100 fps. The scanner's four-lens configuration can scan objects with up to 0.02mm accuracy, has a maximum single capture range of 57 x 40" at 47", as well as a 7.9 to 47.2" working distance. The robust internal components and 6" touchscreen make the Sermoon P1 a solid choice for standalone work beyond your computer setup.
Triple Work Modes, Flexible Operation
Seamlessly switch between wired PC, wireless PC, and standalone modes to suit your environment or workflow. The scanner can be connected to your computer via the included USB-C cable or over Wi-Fi to scan up to 6,881,000 points per second and up to 100 fps. Free yourself from a computer connection in standalone mode and scan up to 3,440,000 points per second and up to 60 fps.
High-Performance Internal Components
Powered by a Qualcomm 8-Core 3.36 GHz CPU and an Adreno 740 GPU, this scanner is built for fast, real-time scanning and data processing in standalone mode. 24GB of LPDDR5X RAM gives you plenty of bandwidth for smooth and stable processing, and the 256GB of UFS 4.0 internal storage provides space for your projects and high-speed transfer capabilities.
Hybrid Light Source System
Featuring 22 + 7 + 1 blue laser lines + NIR structured light scanning modes, the Sermoon P1 is adaptable to different materials and light sources. The single-line deep hole mode measures hard-to-reach areas, the 7 parallel-line fine mode is capable of swift detail capture for intricate objects, and the 22 cross-line fast mode offers efficient scanning to quickly capture the geometry and dimensions of large parts. NIR modes provide fast, marker-free scanning for large objects and the human body.
Wide Scanning Range, All-in-One Efficiency
By combining blue laser lines and NIR structured light, the scanner supports a wide scanning range. The minimum scan size is 0.2 x 0.2 x 0.2" and the maximum scan size is 157.5 x 157.5 x 157.5", making it suitable for anything from coins to statues.
Full-Color Texture Scanning
Equipped with a high-performance Qualcomm ISP chip and a full-color RGB camera with global shutter and auxiliary lighting, the Sermoon P1 delivers rich, realistic textures. The processor uses advanced color mapping algorithms to ensure accurate and vivid color reproduction.
Power Throughout the Day
This scanner comes with two swappable batteries to ensure seamless, uninterrupted operation, and a smart power-saving system automatically engages sleep mode when needed to extend battery life. Fast charging is available via the USB-C port, which charges the device to 80% in 50 minutes.
Powerful and User-Friendly Software
An all-in-one, onboard software integrates Calibration, Scanning, Point-cloud Fusion, Mesh Editing, and Multi-Scan Merging functions, enabling complete model processing directly on the scanner. CrealityScan is available on Windows and macOS for computer processing, and scan data can be easily imported into software such as QuickSurface and Geomagic Design X.
Additional Details
- AI-based temperature compensation algorithm to ensure stable output and consistent scanning during extended use
- Built-in Wi-Fi 7 and advanced lossless compression algorithms ensure faster, more reliable data transfer
- Efficient operation in 100,000 lux or less
- Scans black or metal objects without the use of scanning sprays

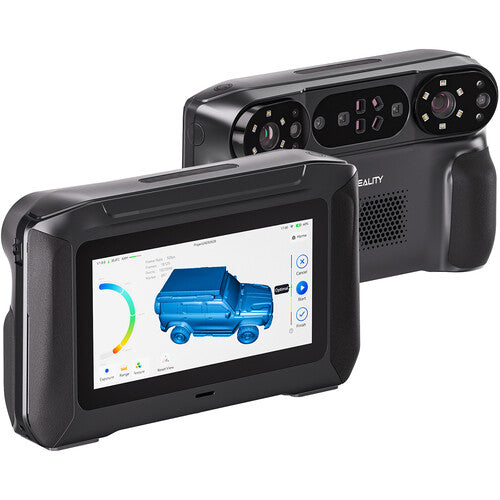

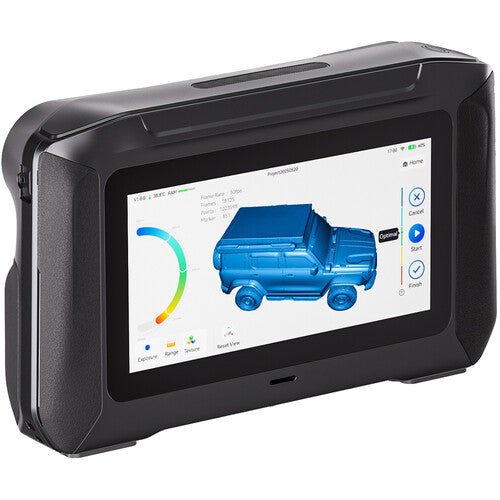

- 6" HD touchscreen with 160° viewing angle
- Ergonomic grips for extended scanning sessions
- Included carrying case and lanyard for field use
