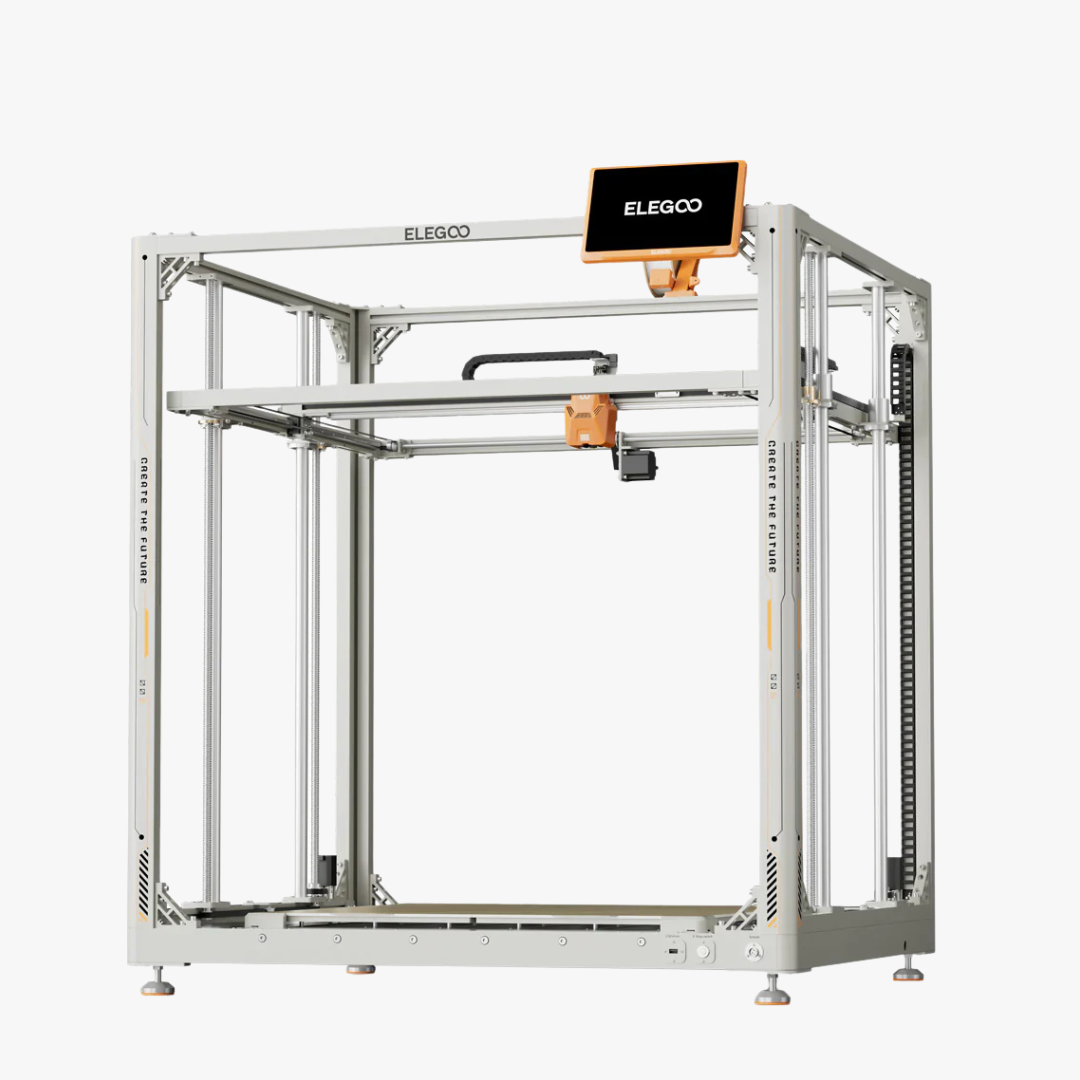

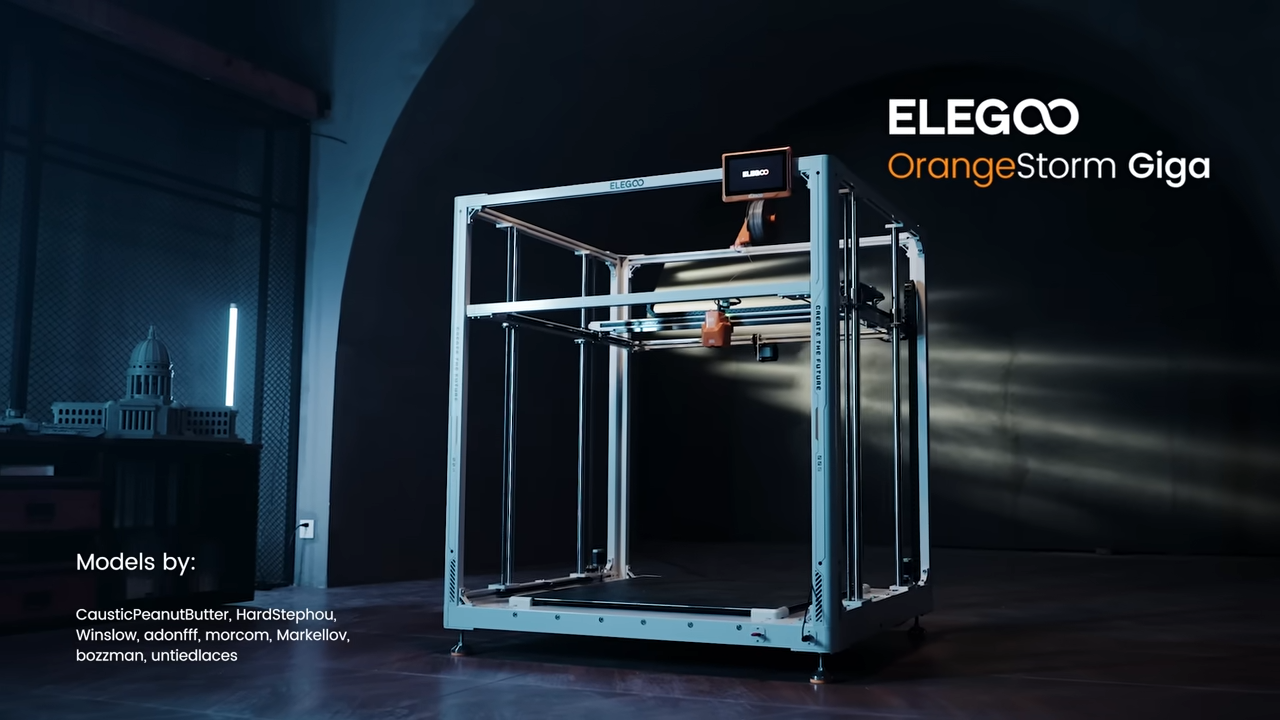

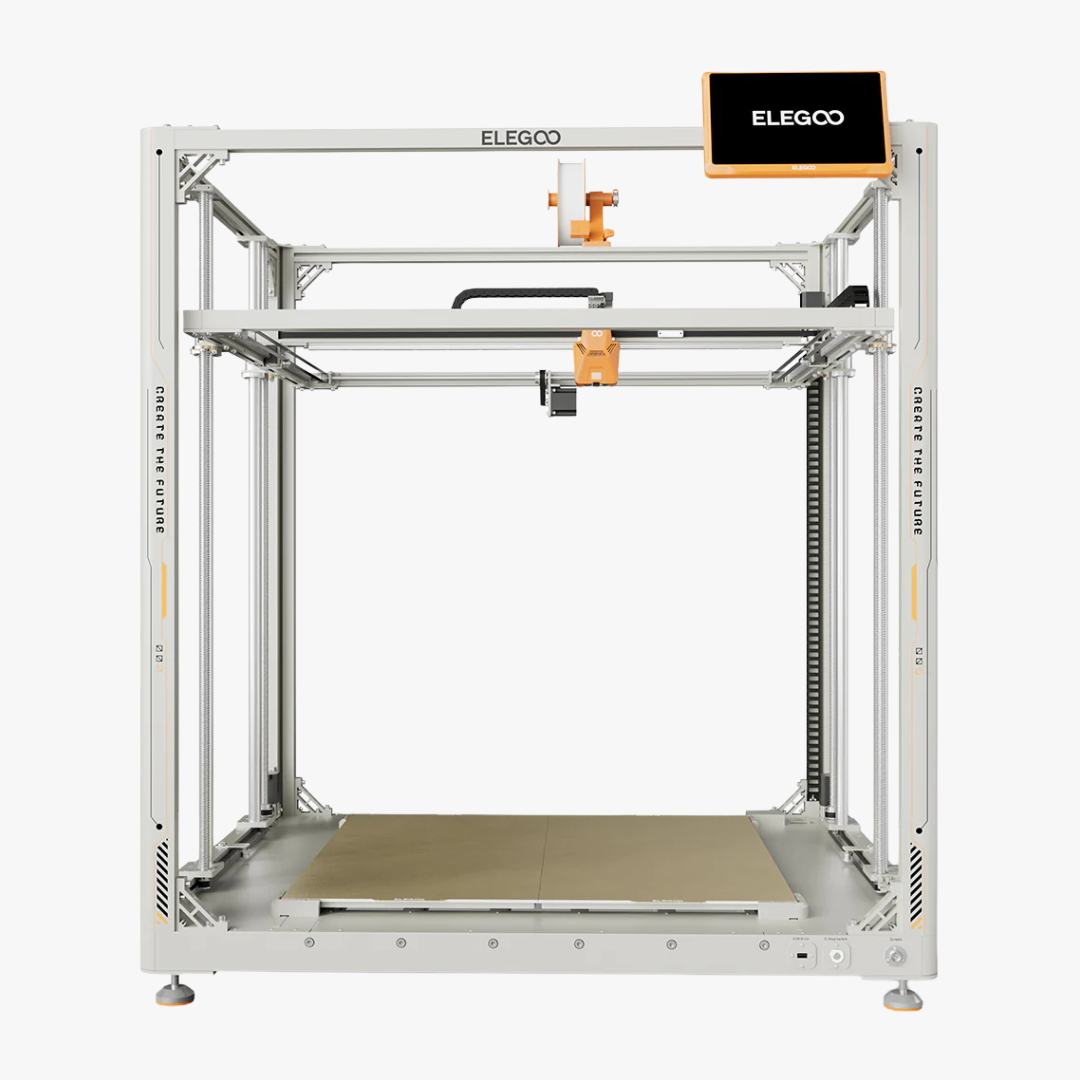

OrangeStorm Giga
Printer Features:
- Gigantic Build Volume: 800mm x 800mm x 1000mm
- Efficient Heated Bed
- Fast Printing
- Support Multi-Nozzle Printing
- Powerful Cooling Fan
Return within 2 days of purchase.
Guarantee Safe Checkout
Gigantic in Size
Learn MoreFeatures
Gigantic in Size
Fast Printing
Auto-Leveling
Efficient Heated Bed
Upgraded Nozzle
Multi-Nozzle Printing

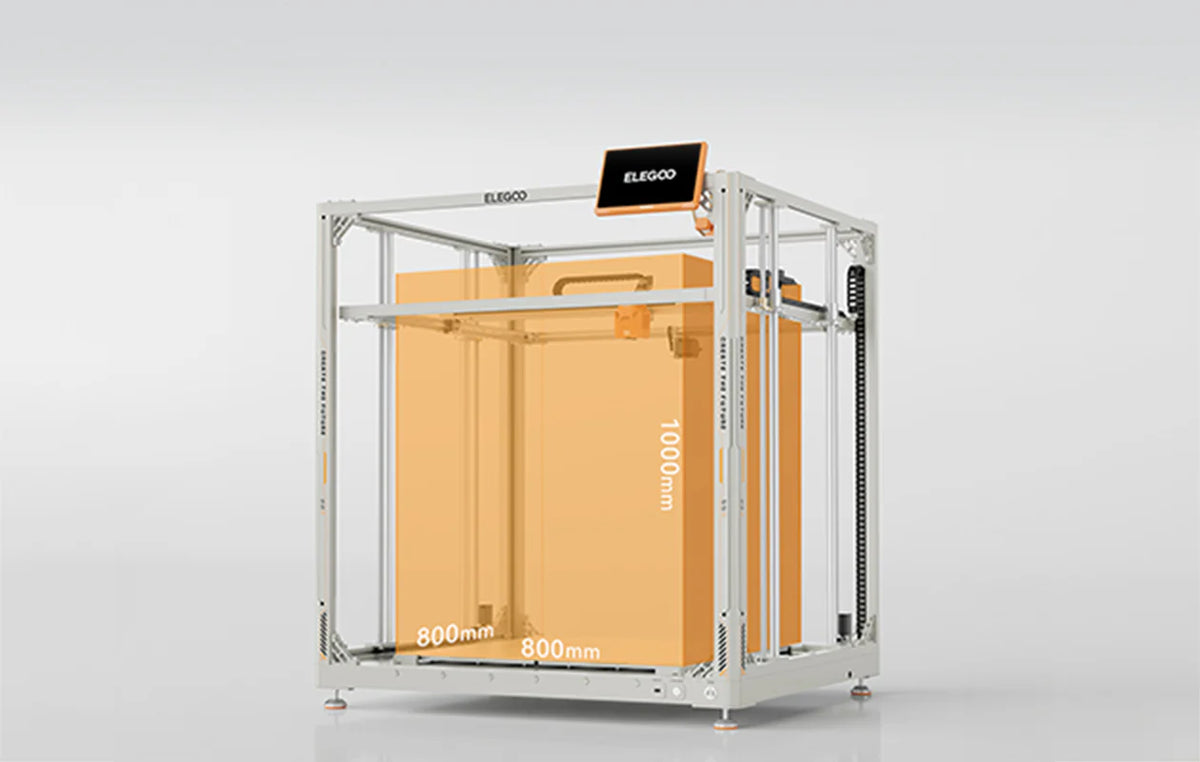

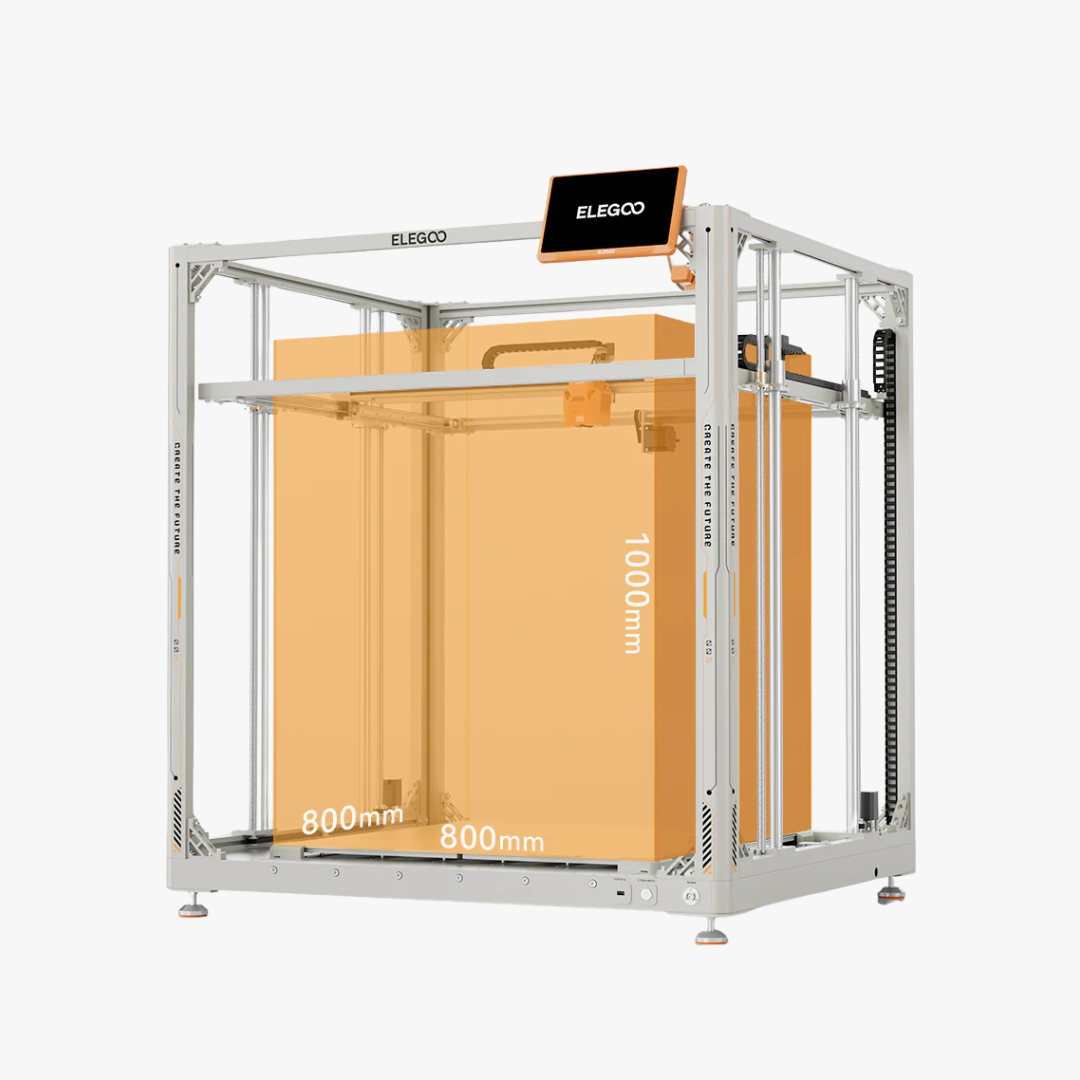

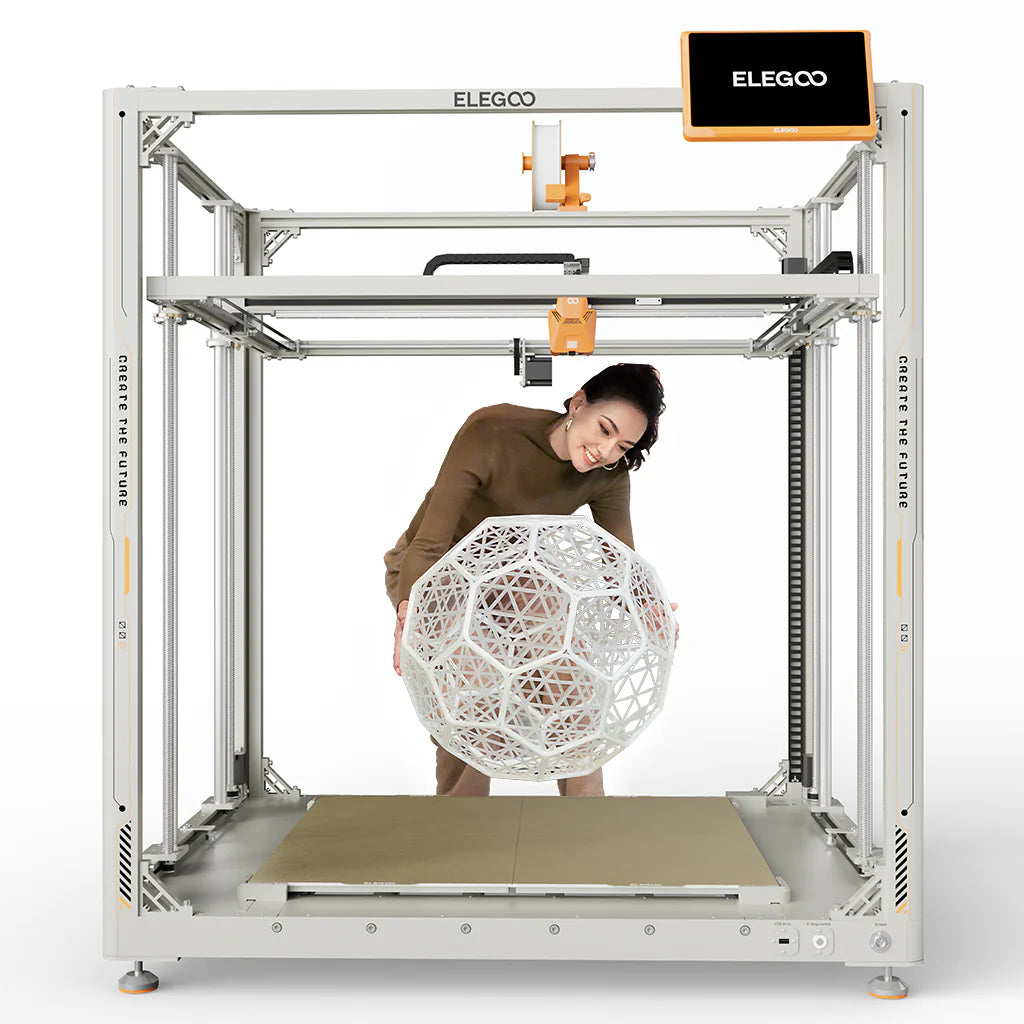

Gigantic in Size
With a build volume of 800 × 800 × 1000 mm, the industrial-grade FDM printer not only meets the user's printing needs for oversized models, but also reduces the need to cut models into smaller sections for efficient printing.

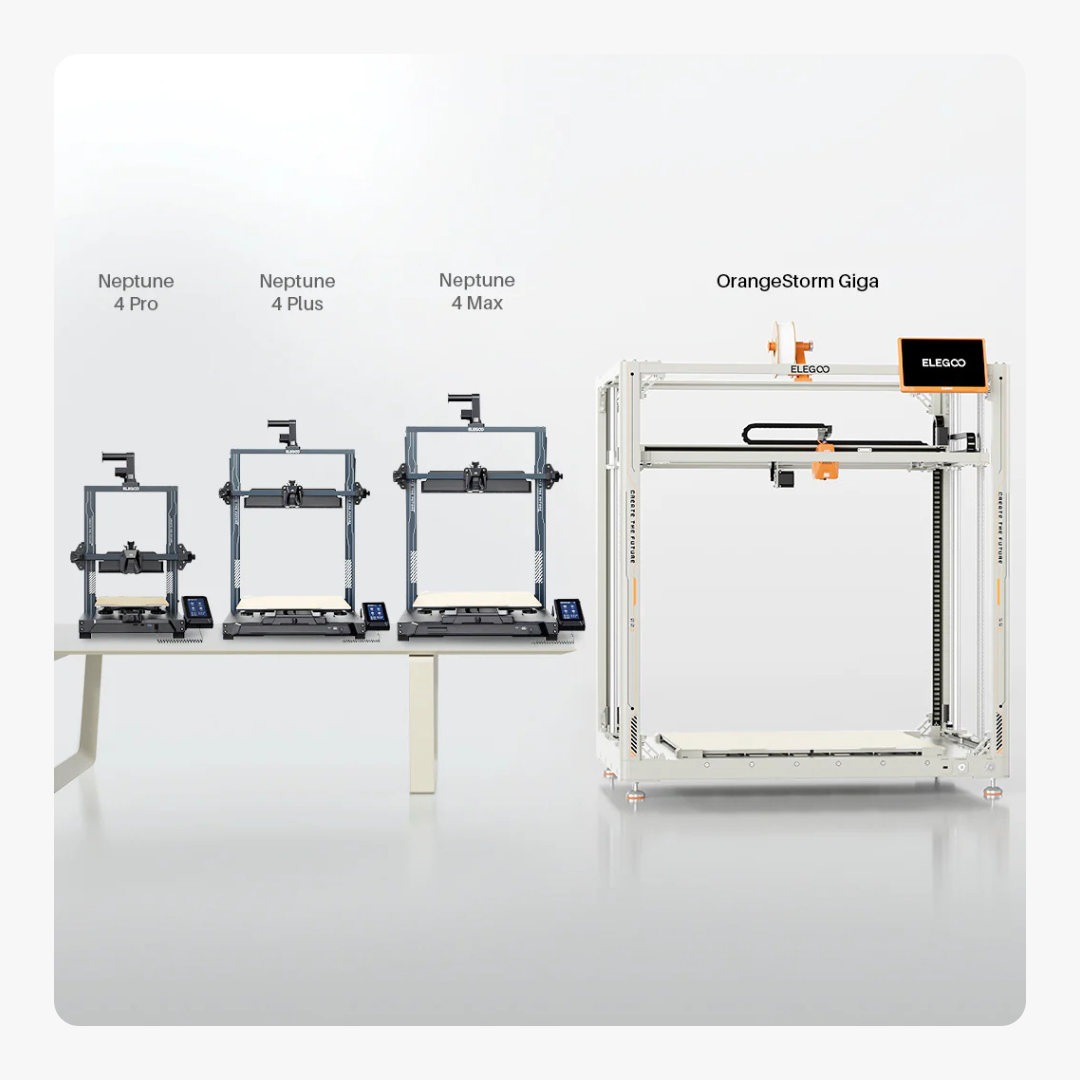

*To better understand how large this printer is: Video or 3D Model Mockup of Giga.

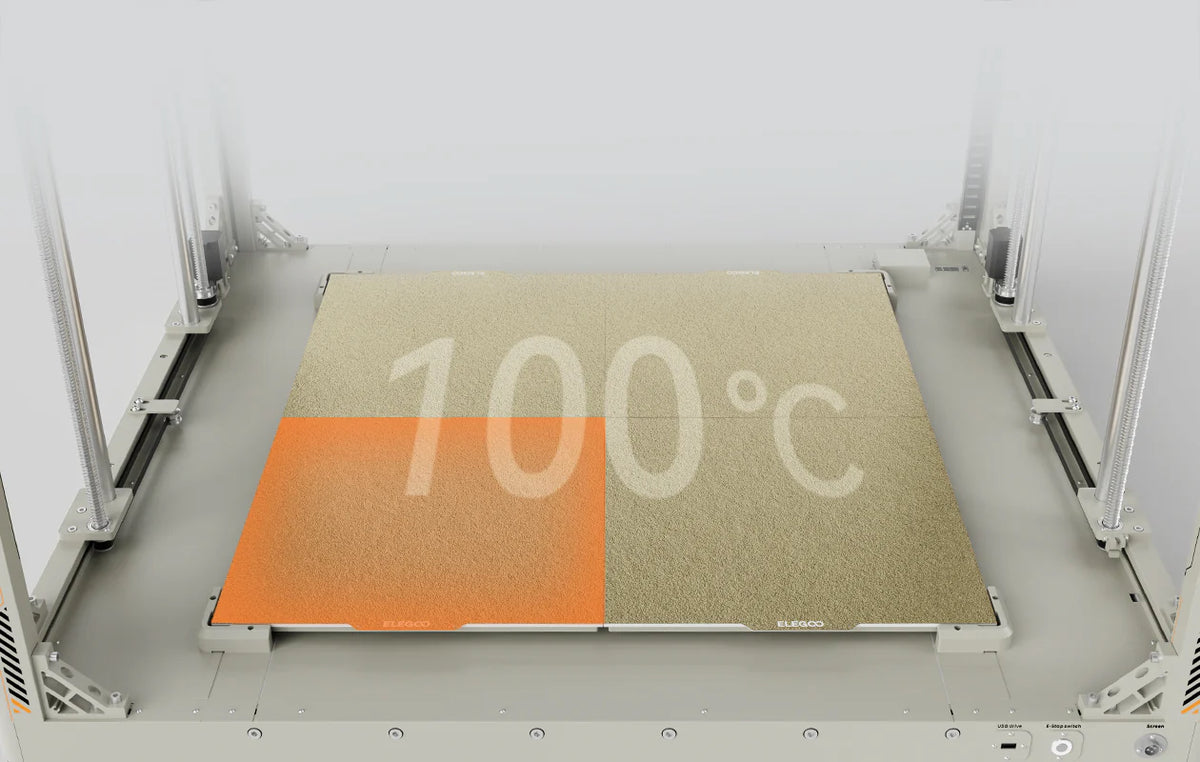

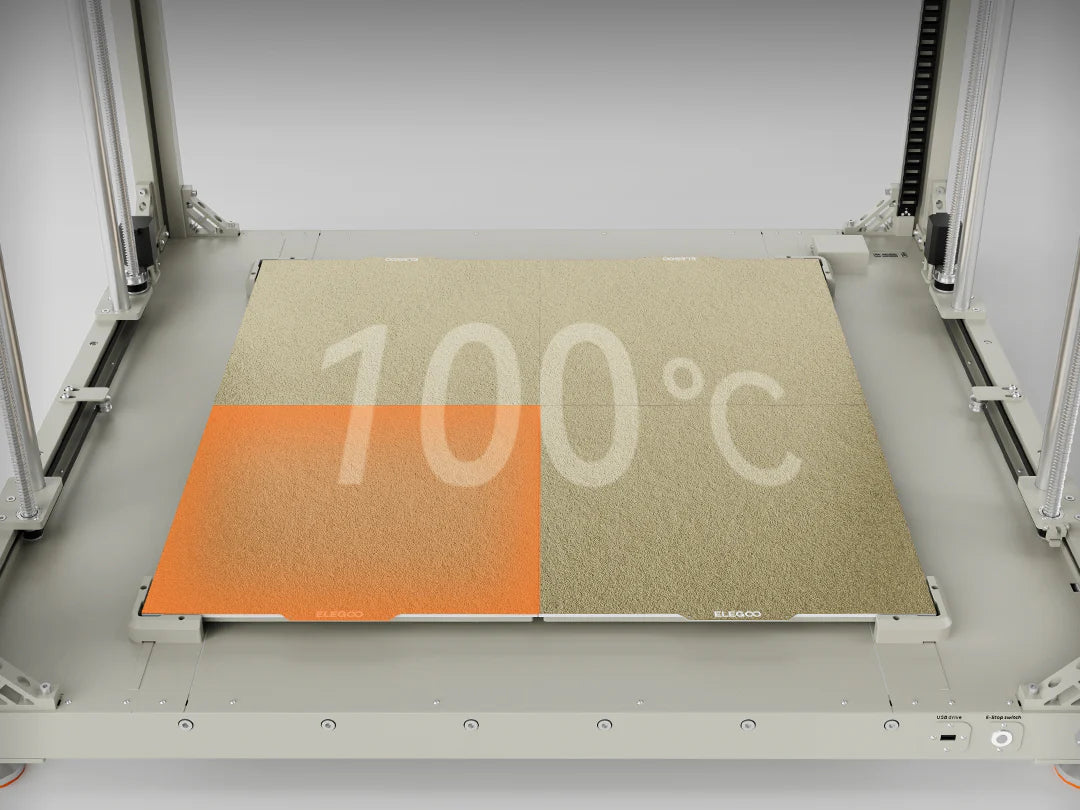

Efficient Heated Bed
The heated bed consists of four independent (410 × 410 mm) PEI magnetic high-temperature platforms with a maximum temperature of 100 °C.
The four platforms can be heated simultaneously to reach 100 °C over the entire area in 17 minutes (ambient temperature: 25 ℃).
The platform where the model is located can also be automatically recognized and heated independently, or manually and independently controlled for increased energy efficiency.

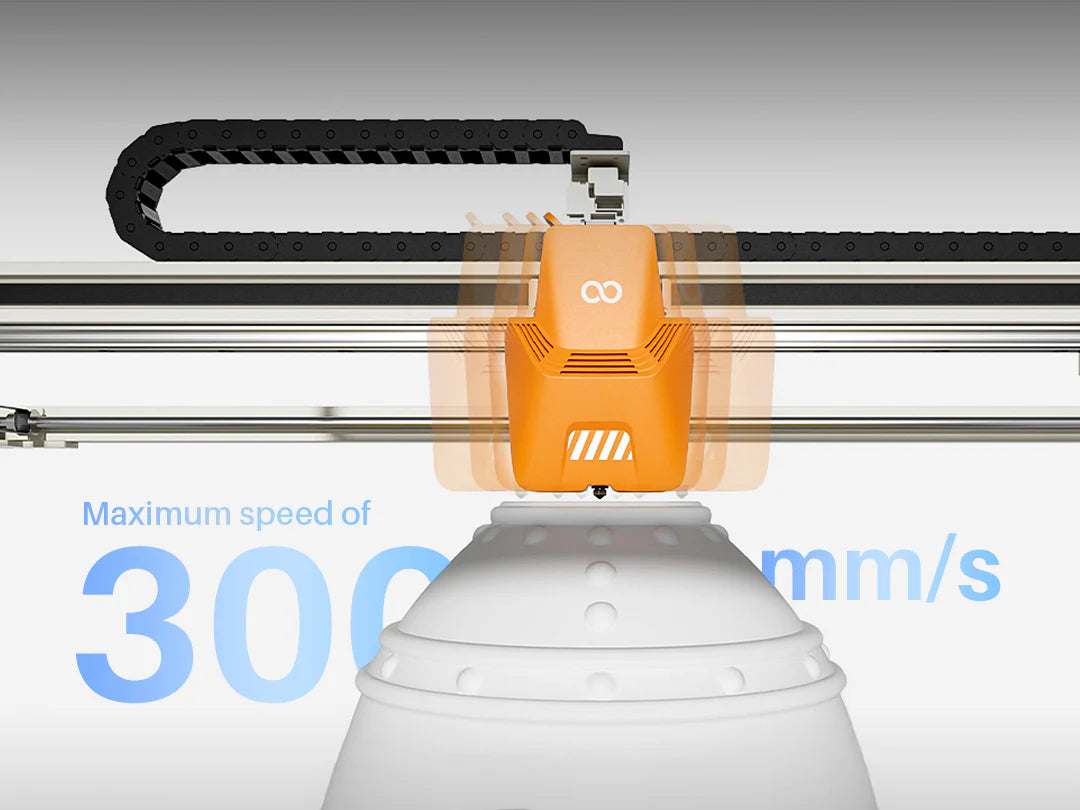

Fast Printing
Utilizing a 64-bit 1.5G clock speed quad-core high-performance processor (SOC RK3328), it provides sufficient computing capacity while delivering 6 times the printing speed, with a maximum speed of 300mm/s (150mm/s recommended), which is the top end print speed for printers of its size.

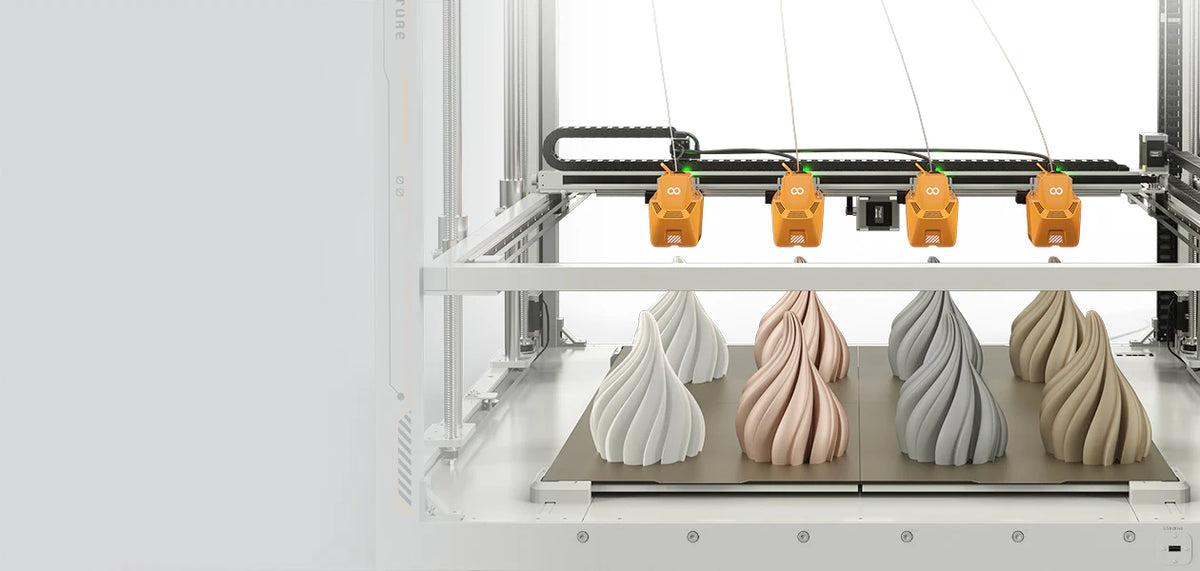

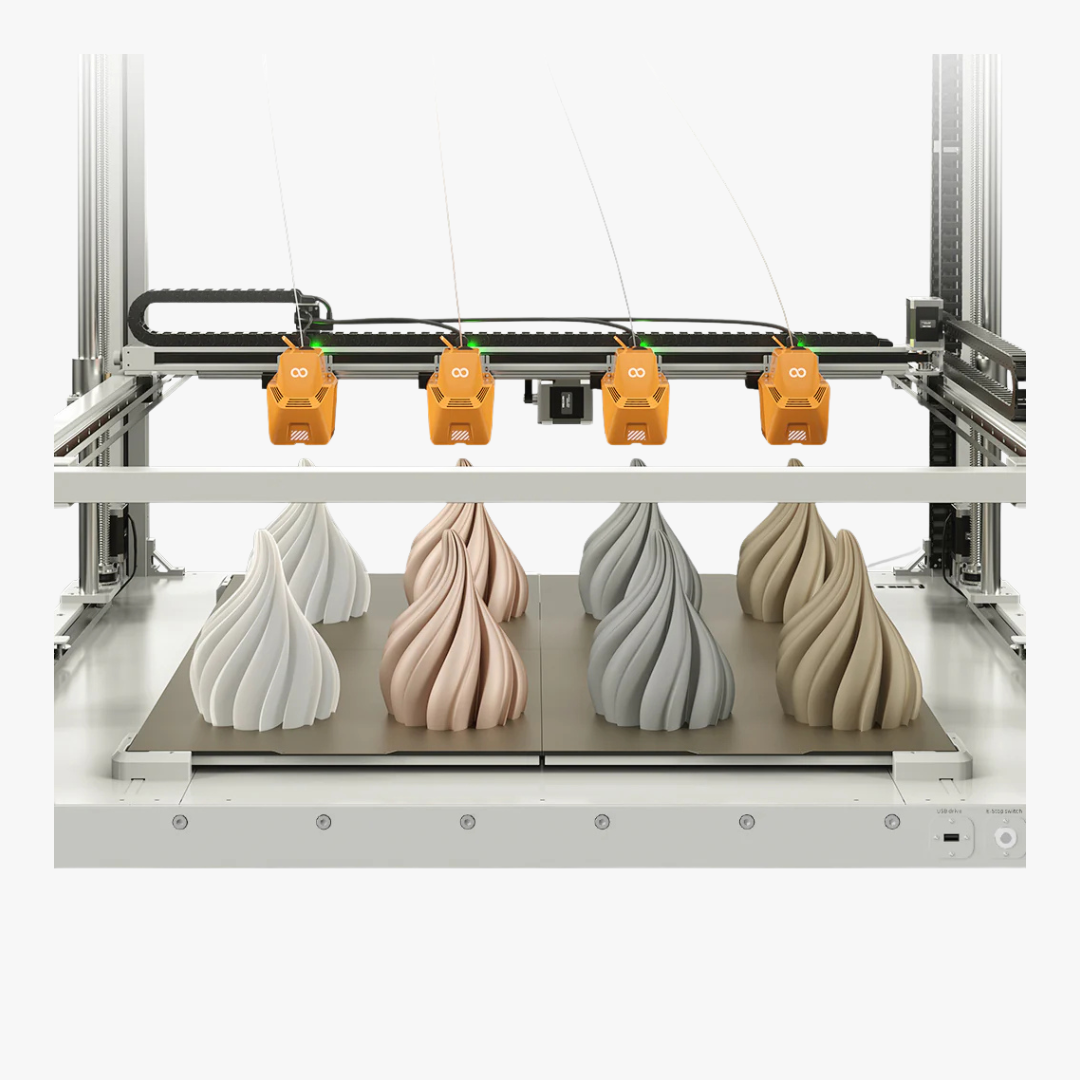

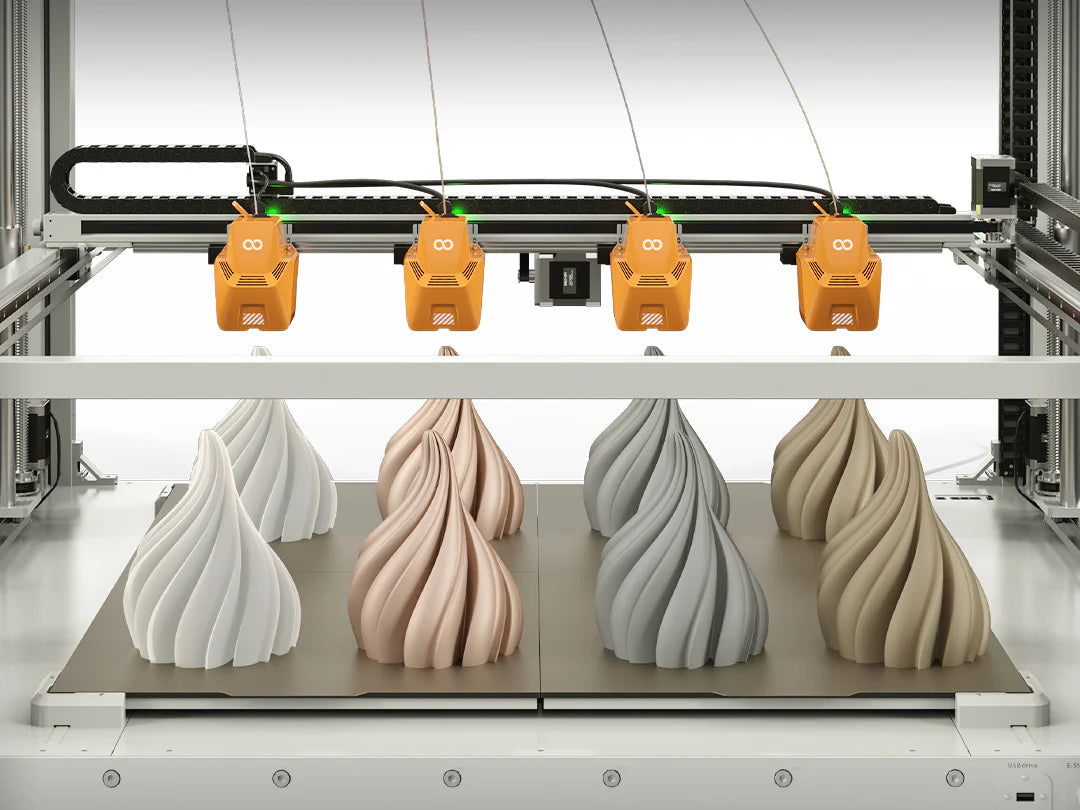

Multi-Nozzle Printing
Three additional printheads can be added to the X-axis to realize simultaneous printing with four nozzles, supporting printing four of the same model, while each nozzle can be equipped with the same material and different color filament to achieve four different colored models of the same kind.
The maximum power requirement is 1,530 W. For each additional printhead, an extra 100 W is needed. Please ensure that your setup can accommodate this total power load.

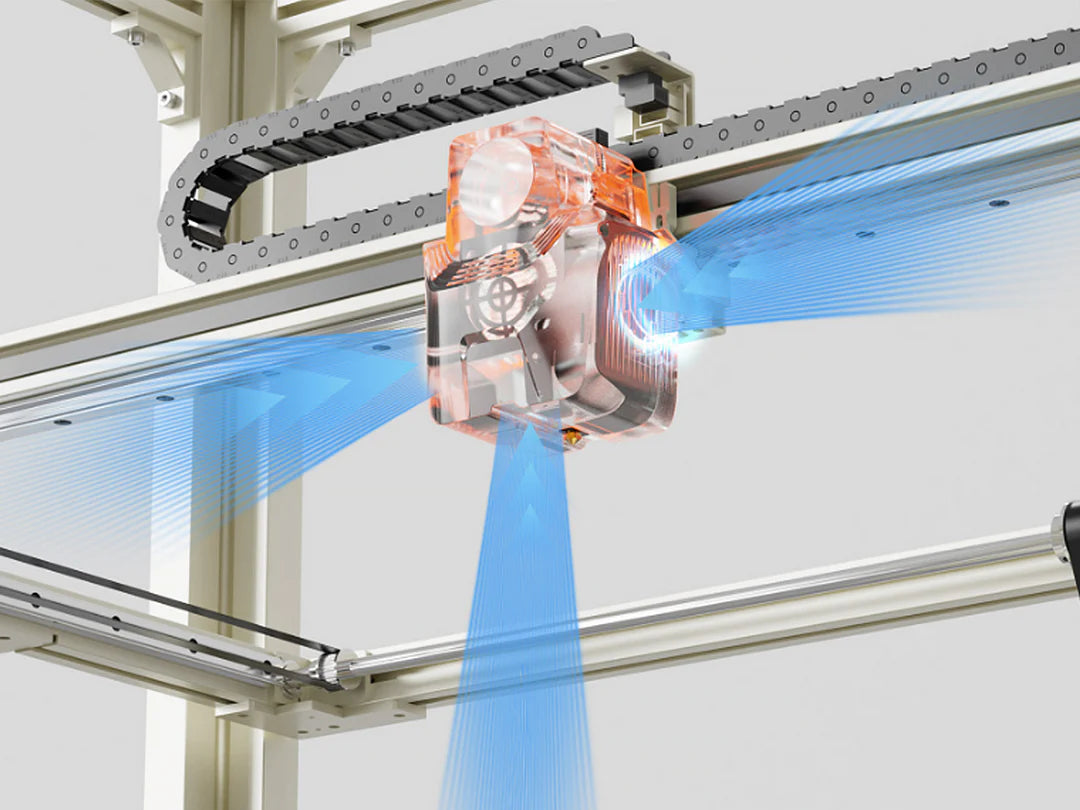

Powerful Cooling Fan
The upgraded dual-sided cooling system ensure consistent and precise cooling for superior print quality. With intelligent control, the fans automatically stop when printing is complete—saving energy, reducing noise, and extending their lifespan. (Includes two 5015 ball blower fans and one 4010 ball axial fan.)

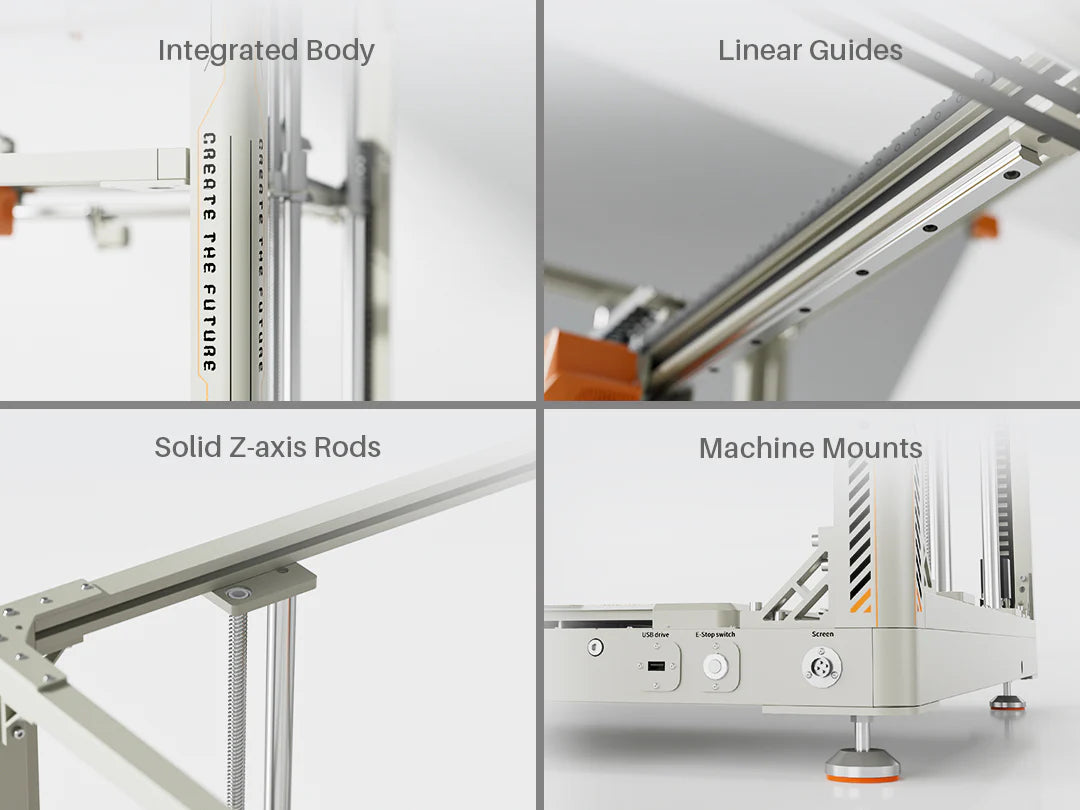

High-Quality Craftsmanship
Integrated body, elegant yet durable. The X-axis and Y-axis are linear guides, effectively improving printing stability and increasing lifespan. The Z-axis features an upgraded version of the Z-Axis rod to make the machine run smoothly and ensure leveling precision. Machine mounts are designed with a carbon steel round base and rubber round anti-slip pad bottom.

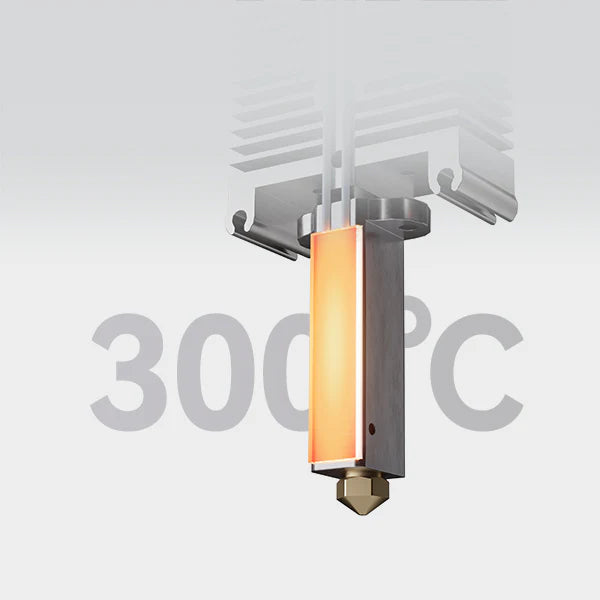

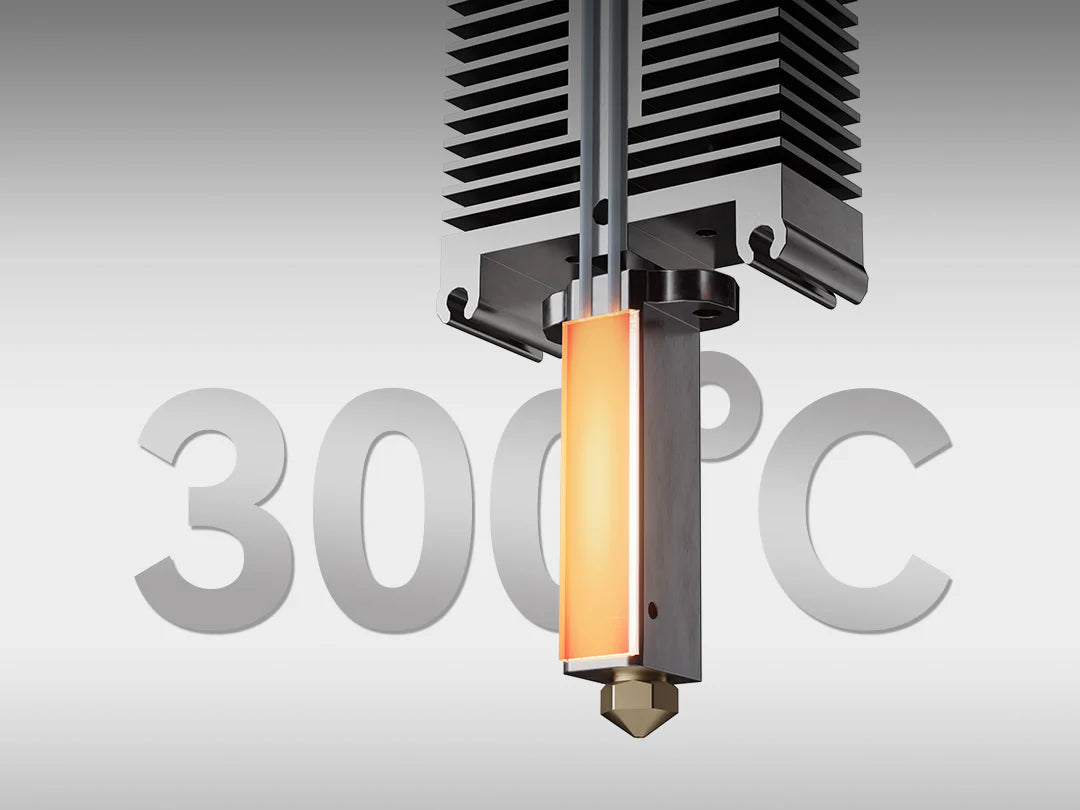

Powerful Extrusion System
OrangeStorm Giga features a high-quality brass nozzle capable of reaching 300 °C, ideal for high-temperature materials. The dual-gear direct extruder and titanium heat break ensure consistent filament flow, while the 60 W ceramic heater provides rapid and stable heating.
Equipped with advanced PID auto-calibration and a built-in acceleration sensor, OrangeStorm Giga ensures exceptional print quality by maintaining precise temperature control and reducing vibrations. Create stunning results for all your projects with ease.
Nozzle Diameter (included): 0.6 mm
Nozzle Diameter (optional): 0.4 mm/0.8 mm/1.0 mm

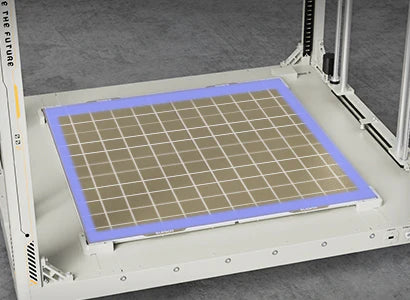

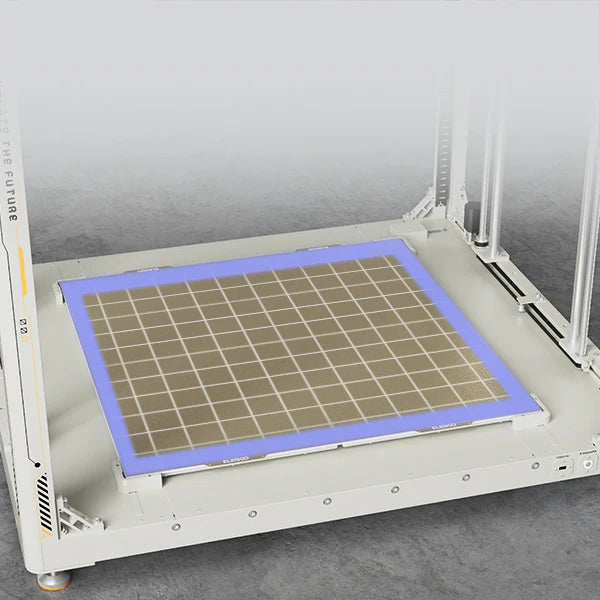

Auto-Leveling
Adopting one-click automatic leveling and a non-contact high-precision sensor to automatically collect 100-point (10 × 10) of platform data to ensure the platform is level.

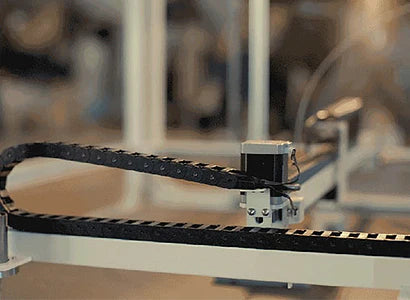

Caterpillar Cable Tracks
The cables on the body are stored in caterpillar cable tracks, which prevents the cables from being worn or broken and you don’t have to worry about them affecting your prints. Furthermore, it prevents dust and other debris from entering the cables, ensuring the stability and reliability of the entire system.
Filament Detection & Power Loss Recovery
No more worrying about being interrupted while printing. When there is a broken filament or no filament, the machine automatically sounds an alarm and pauses printing. Whether it's broken filament, no filament, power outage, or a manual pause in printing, you can resume printing again.

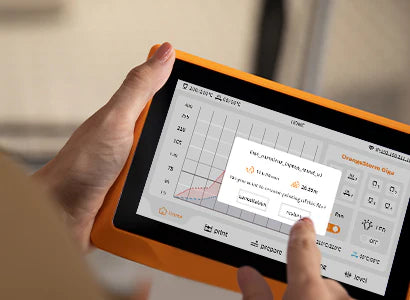

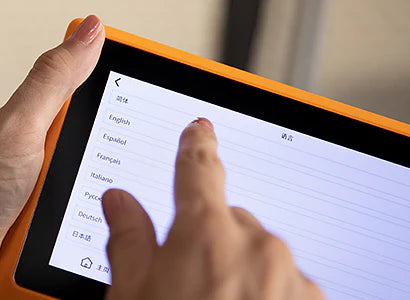

Portable 10.1-inch HD Capacitive Screen
The 10.1-inch HD capacitive screen can be detached from the body for handheld operation while supporting ELEGOO Cura model preview and switching between eight languages.

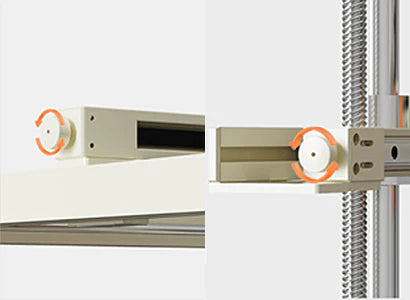

User-Friendly Belt Knobs
The X/Y axis belt is used to transmit the power of the motor and control the movement of the print head on the plane. The knobs design can easily and accurately control the tightness of the belt to obtain the best printing effect.

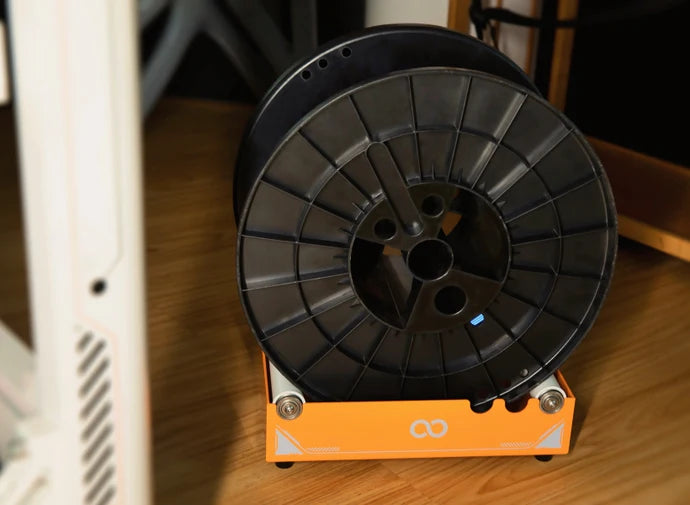

Large Spool Holder
Crafted from high-quality sheet metal, our spool holder can accommodate filament spools up to 5 kg with ease. Its compact and sturdy design ensures that your large-scale printing projects receive reliable and consistent support throughout the printing process.
What's in the box
Technical Specifications
| Build Volume | 800 × 800 × 1000 mm |
| Printing Speed | 30–300 mm/s (Recommended 150 mm/s) |
| Default Acceleration | 5,000 mm/s² |
| Maximum Acceleration | 5,000 mm/s² |
| Printing Accuracy | ± 0.1 mm |
| Layer Thickness | 0.1–0.5 mm (Recommended 0.24 mm) |
| Supported Filament | PLA / PETG / TPU / Nylon |
| Filament Diameter | 1.75 mm |
| Technology | Fused Deposition Modeling (FDM) |
| Printing Platform Size | 820 × 820 mm (4 independent 410 × 410 mm PEI plates) |
| Extruder | Dual-Gear Direct Extruder (2 Fans) |
| Nozzle | Brass |
| Nozzle Diameter | 0.6 mm |
| Build Plate | PEI Spring Steel Sheet |
| Bed Leveling Method | Manual Leveling + 100-Point Auto-Leveling |
| Heat Break | Titanium Alloy |
| Z-Axis Lead Screw | 4 Lead Screws, 4 Linear Guide Rods |
| Motor Drive | Silent Drive (All Axes) |
| Motherboard | Klipper High-Speed Quiet Motherboard |
| Max. Nozzle Temperature | 300 °C |
| Max. Heated Bed Temperature | 100 °C (Ambient Temperature 25 °C) |
| Ambient Temperature | 5–40 °C |
| Filament Run Out Sensor | Yes |
| Power Loss Recovery | Yes |
| Multi-Nozzle Printing | Yes |
| Camera | - |
| Full-Auto Calibration | - |
| Auto Filament Unloading | - |
| System | Klipper |
| Touch Screen | 10.1-inch Color Capacitive Touch Screen |
| Language | English, French, German, Russian, Italian, Spanish, Japanese, Chinese |
| Connectivity | USB, LAN, Wi-Fi |
| Slicing Software | ELEGOO Slicer (Recommended), Orca, Cura |
| Input Format | STL, OBJ |
| Output Format | Gcode |
| Machine Size | 1,224 × 1,164 × 1,425 mm |
| Maximum Size for Machine Activity | 1,224 × 1,520 × 1,570 mm |
| Package Size | Base + XY-Axis Assembly: 1,350 × 1,215 × 420 mm | Z-Axis Assemblies (×2): 1,350 × 1,215 × 350 mm |
| Net Weight | 104 kg |
| Gross Weight | 145 kg |
| Power Input | 100–120 VAC / 220–240 VAC, 50/60 Hz |
| Power Output | 24V |
| Rated Power | 1,530W (1 nozzle) + 100W per additional nozzle (1,830W max at 4 nozzles) |
