Lynx - 3D Scanner

SKU: LYNX
3DMAKERPRO

Selling fast! 4 people have this in their carts.

Sale price AED 2,800.00
Features
  • UP TO 0.10MM ACCURACY
  • LARGE SCANNING RANGE
  • IDEAL FOR 100-2000MM OBJECTS
  • USER-FRIENDLY SOFTWARE
Add to Wishlist Add to Compare
Order in the next to get it between and

Ask a question
Share

Estimate delivery times: 1- 2 days

Return within 2 days of purchase.

Guarantee Safe Checkout

Visa
Mastercard
American Express
Diners Club
Apple Pay
Google Pay
Tabby
Lynx - 3D Scanner

Lynx - 3D Scanner

AED 2,800.00

What to Expect from the

Lynx - 3D Scanner

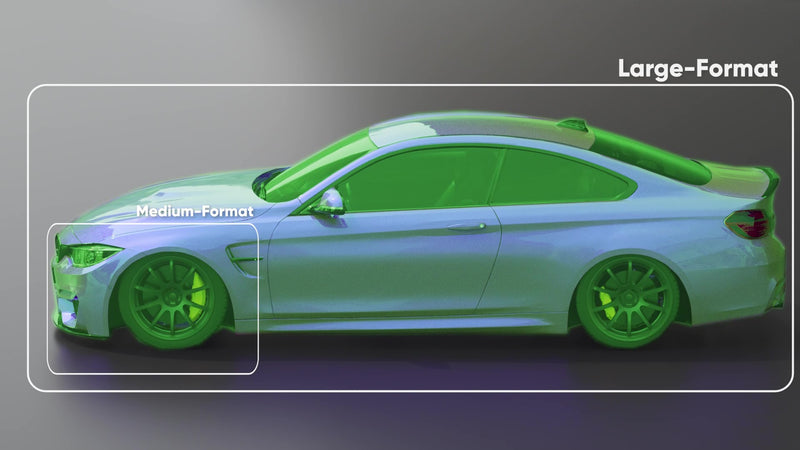

Capture Larger Objects

Lynx's Single Capture Range is 250×400mm, which is 200% larger than traditional mid-format scanners. With Lynx, you can scan objects up to 5000x5000x5000mm, a whopping 3700% improvement!

Smooth Scanning Experience

Lynx enables smooth scanning of large objects with an optical stabilizer and advanced visual tracking, minimizing the probability of misalignment without markers.

Faithful Object Reproduction

With 0.10mm accuracy and 0.30mm resolution, Lynx helps you create precise and detailed point clouds, achieving a high level of object reproduction suitable for art, design, and industrial purposes.

Technical Specifications

Accuracy 0.10mm
Resolution 0.30mm
Frame Rate 10fps
Tracking Mode Visual tracking
Work Distance 400-900mm
Single Capture Range 250 x 400mm
Typical Object Sizes 100-2000mm
Special Surfaces Certain surfaces and materials, such as transparent, reflective, or those hairy area may require a scanning spray for optimal scanning results.
Output Format OBJ/STL/ASC
Compatible System Windows10/11 64bit, MacOS12/13
Compatible Mobile Android 10.0 or later, iOS 15.0 or later (Extended support)
Minimum Computer Requirements Intel Core i5 8th, 16GB RAM, MX250 GPU with 2GB VRAM
Recommended Computer Requirements Intel Core i7 8th, 16GB RAM, NVDIA1060 GPU with 4GB VRAM
Light Source NIR
Color Texture Extended support
USB Interface USB2.0
Dimensions 244x75x48mm
Weight 800g
