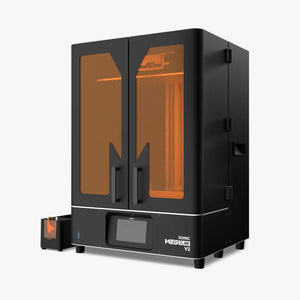

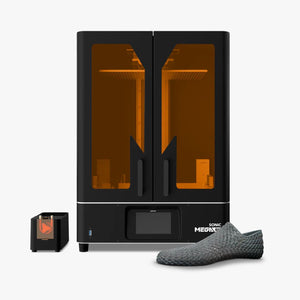

Home Phrozen Sonic Mega 8K V2 - 3D Printer

Phrozen Sonic Mega 8K V2 - 3D Printer

SKU: ELCMV1503A
Sale price AED 10,500.00
Features
  • 15-inch print area & 8K quality
  • Automatic resin feeder
  • Two plug-in air purifiers
  • Resin Drip Hanger
Add to Wishlist Add to Compare

Notify me when available

Register to receive a notification when this item comes back in stock.

Ask a question
Share

Estimate delivery times: 1- 2 days

Return within 2 days of purchase.

Guarantee Safe Checkout

Visa
Mastercard
American Express
Diners Club
Apple Pay
Google Pay
Tabby

What to Expect from the Phrozen Sonic Mega 8K V2 - 3D Printer

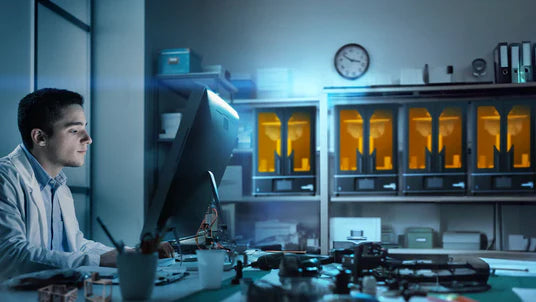

Reduce Turnaround Time From Days to Hours

Develop multiple iterations of functional prototypes within hours by cutting out external vendors and lengthy communication processes, increasing time and resource effectiveness by over 90%.

Extra Printing Spaces for Any Prototyping Needs

With Sonic Mega 8K V2’s extra printing space and 43 µm XY-resolution, flexibility is in the palm of your hand. Complete larger prototypes or variations of smaller ones in a single batch, reducing the downtime and further accelerating the testing and development process.

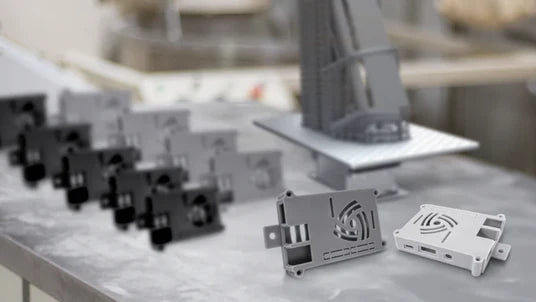

Cost-Effective Small-Batch Production for Testing

Compared to traditional CNC or injection molding, Sonic Mega 8K V2 can quickly produce a small batch of prototypes at just a fraction of the cost. Validate and refine your designs early, ensuring reliable products before committing to larger investments with full-scale manufacturing.

Sonic Mega 8K V2 Resin 3D Printer Technical Specifications

Printing Technology LCD Resin (SLA/DLP)

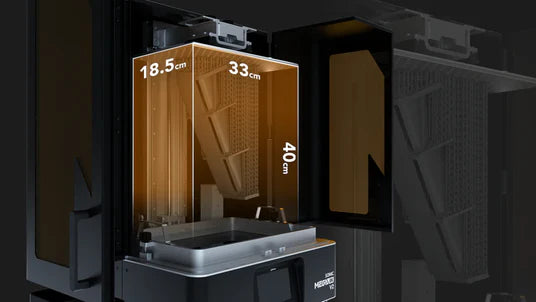

Printing Volume 330×185×400mm (L×W×H)
XY Resolution 43 µm
Layer Thickness 0.01-0.30 mm
Light Source 405nm ParaLED® Matrix 3.0
LCD Specification 15" 8K Mono LCD
Release Film ACF Film
Printing Speed Average 400 layers/hour
Rail System Single Linear Rails
Screw Type Ball Screw
Operation Panel 5" Touch Panel
Connectivity USB
Slicer Software CHITUBOX V1.9.6 and above (or others)
Compatible File Format .CTB/.PRZ
Printer Size 475×400×680mm (L×W×H)
Printer Weight 35 kg
Power Requirement AC100-240V, 50/60Hz
System Power Max 240W
Documentation User Manual
Training Materials Video Tutorials
Resin Profiles CHITUBOX Resin Profile
